Real time and TV View

At Pulsar, we continuously strive to listen to our customers and provide the best possible user experience. That’s why we’ve launched a new update to the Real-Time tab, with a strong focus on usability — now you can do everything from one place!

You can filter your machines by status and sort them alphabetically. We invite you to try it out and share your feedback with us.

Annotation

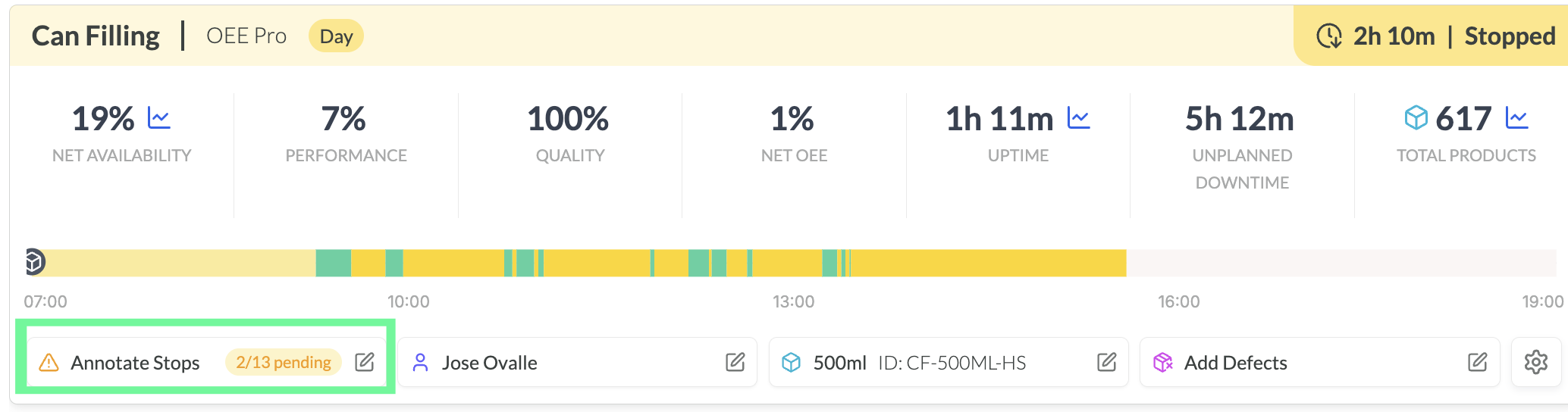

From the machine card, select “Annotate Stops”.

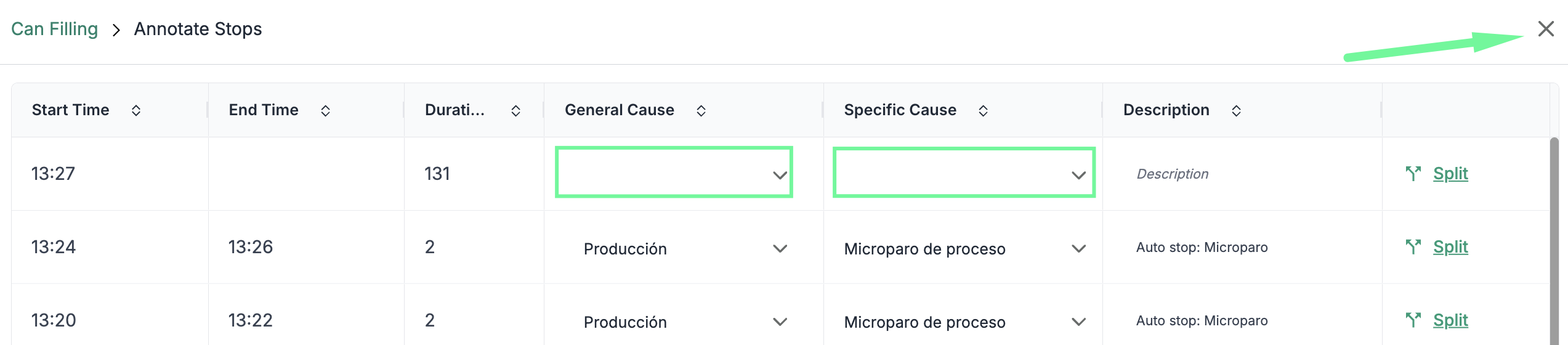

Then, choose the appropriate tags for each downtime event and close the Page "X"

Operator

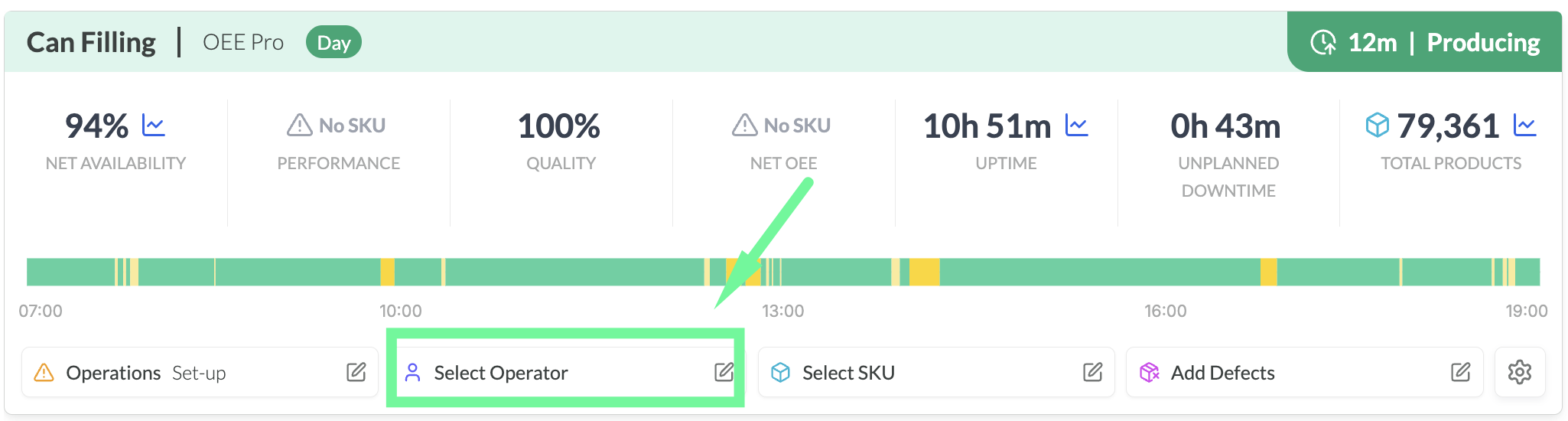

From the machine card, select “Select Operator.”

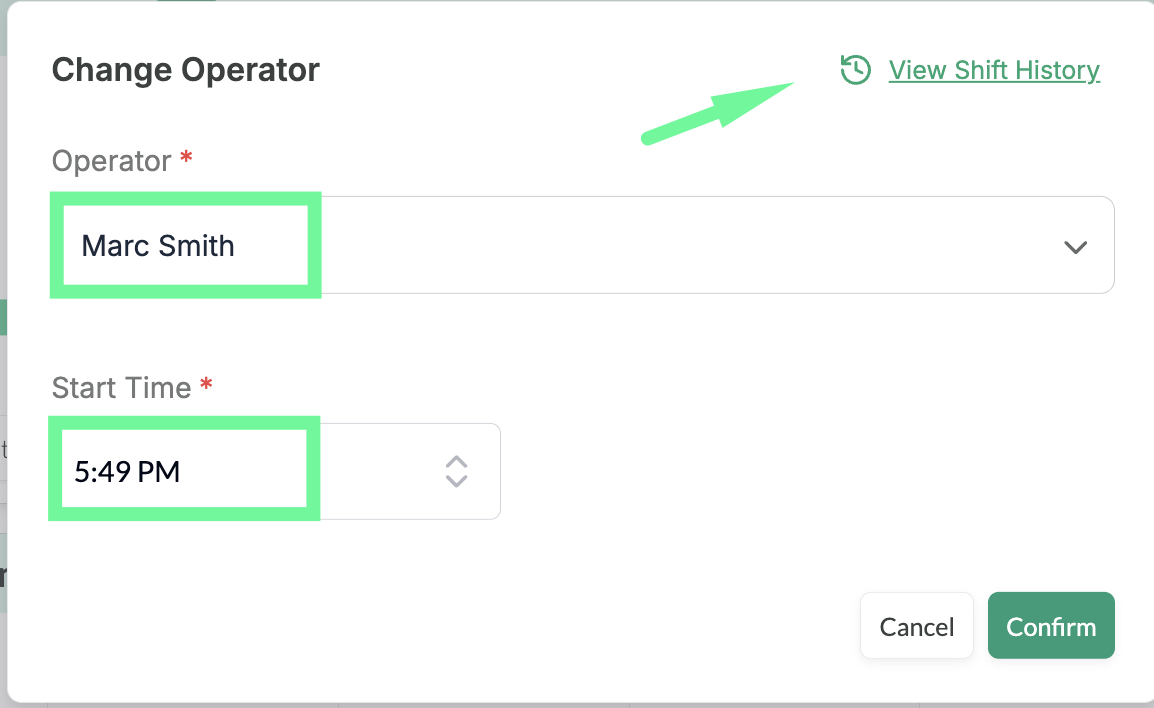

Then, choose the current operator and click “Confirm.”

If the operator changes during the shift, you can repeat this process by selecting the start time of the new operator. You can also view the history of operators who have worked on the machine during the current shift.

SKU

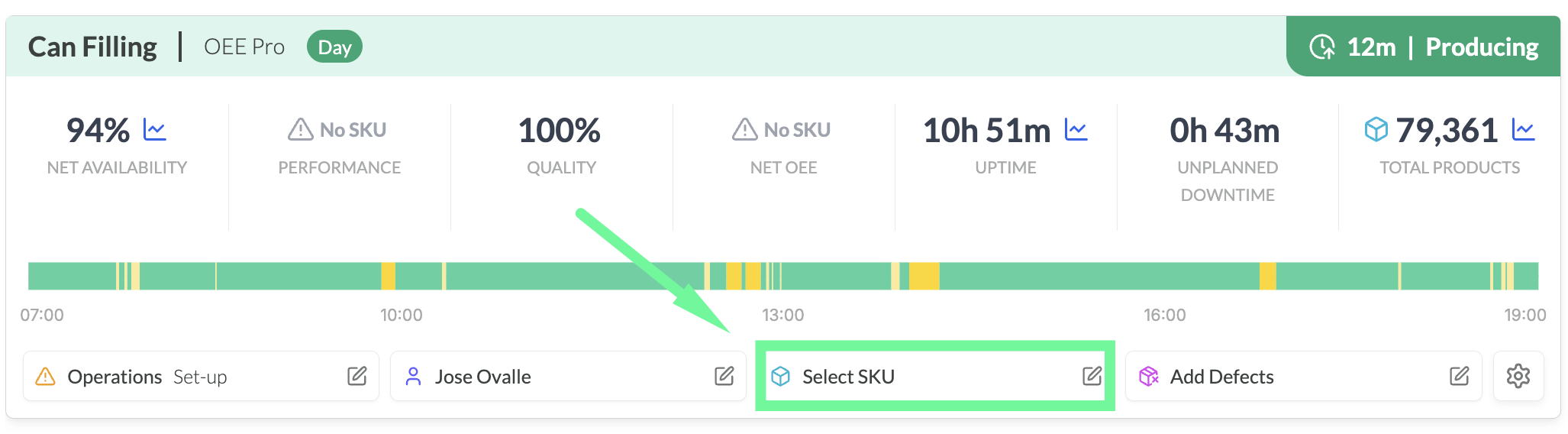

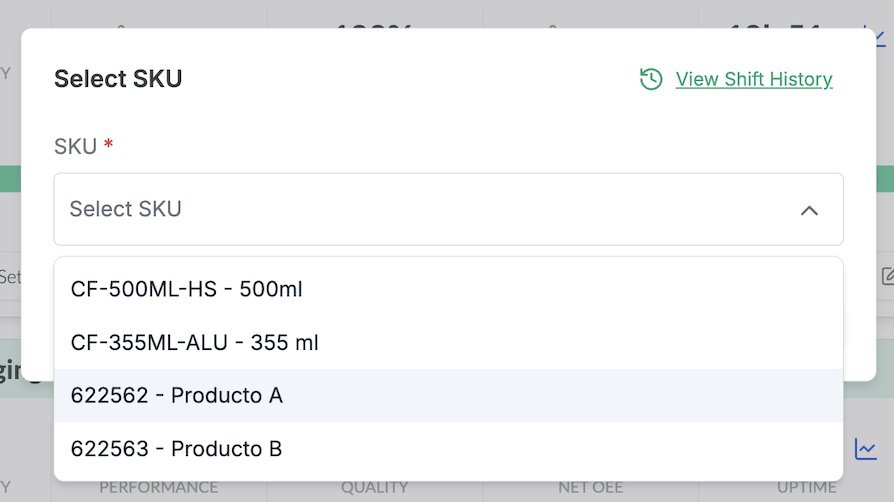

From the machine card, select “Select SKU.”
Then, choose the SKU being produced and click “Confirm.”

IMPORTANT: “Select SKU” is only available for accounts with production tracking enabled using a counting sensor:

• If you do not have production enabled, this option will not be available. Please contact your Customer Success representative for more information.

• If you have production without a counting sensor, this option will appear as “Add Production”, and you will need to enter additional information such as quantity and end time.

Defects

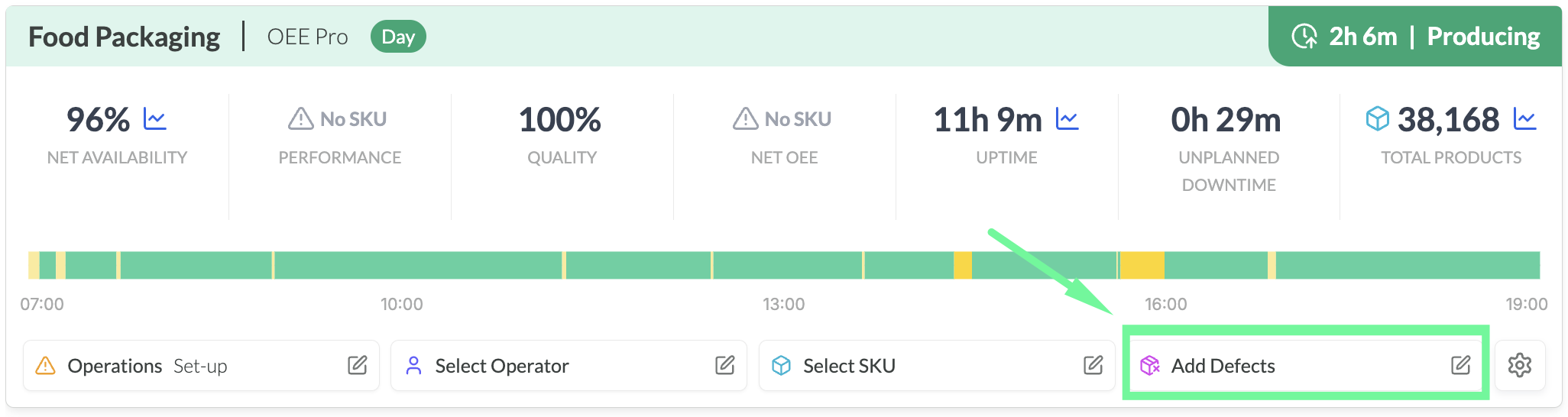

From the machine card, select “Add Defects.”
Then, choose the defect category (optional) and click “Confirm.”

IMPORTANT: The “Defects” feature is only available for accounts with the production module enabled. If you do not have production, this option will not be available. Please contact your Customer Success representative for more information.

Metrics

In Pulsar, you can choose which metrics to display in Real-Time and in the TV Mode.

This customization can be set per machine. Please note:

• Up to 7 metrics per machine in Real-Time

• Up to 4 metrics per machine in TV Mode

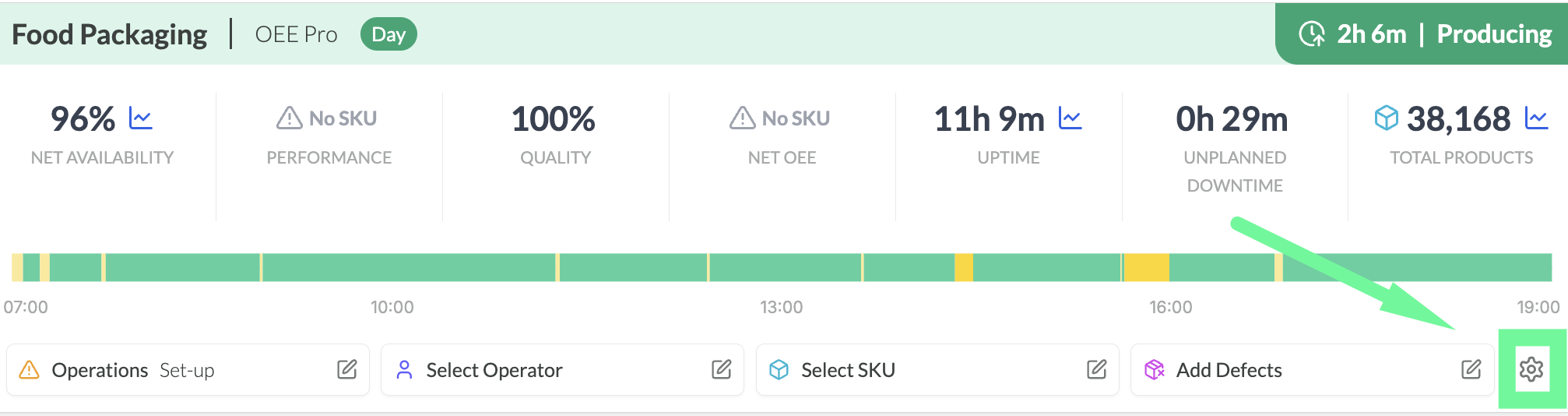

Access this configuration from the machine card. Select the machines you want to configure and choose the metrics for each one — you can assign different metrics per machine.

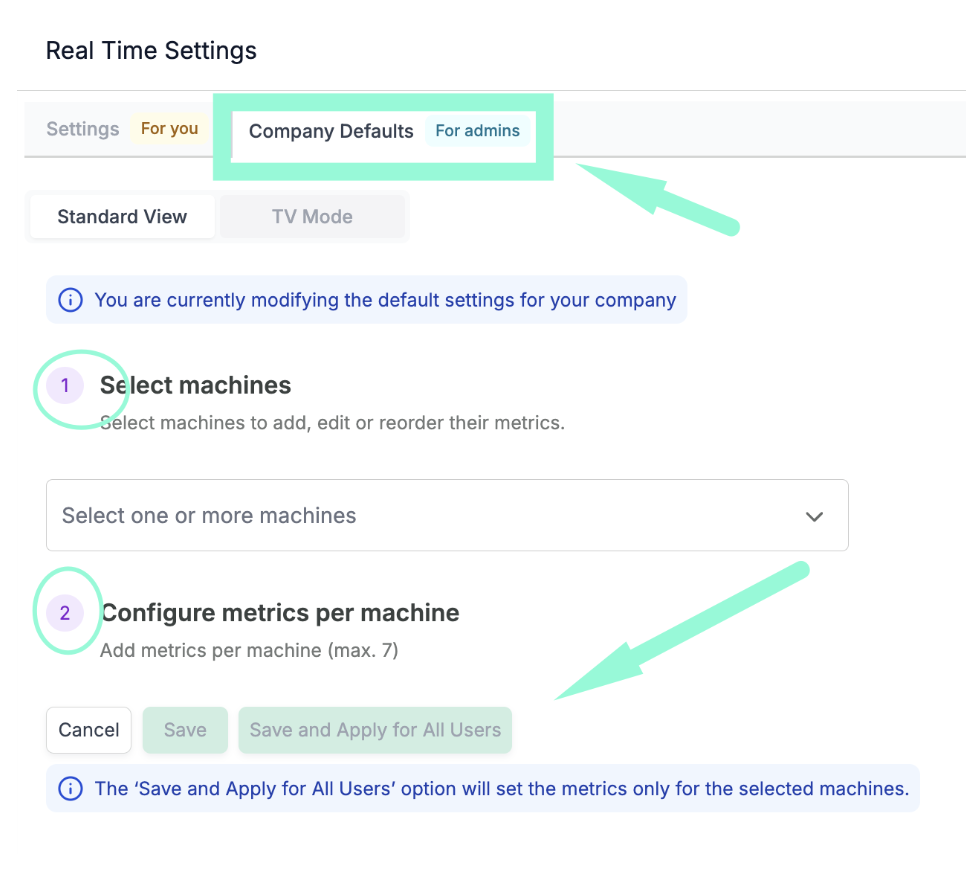

Important: If you are a Pulsar admin, you can apply these settings across your entire organization so all users see the same metrics.

Follow Step 1: Select Machines and Step 2: Configure Metrics per Machine, then click “Save and Apply to All Users.”



TV Version

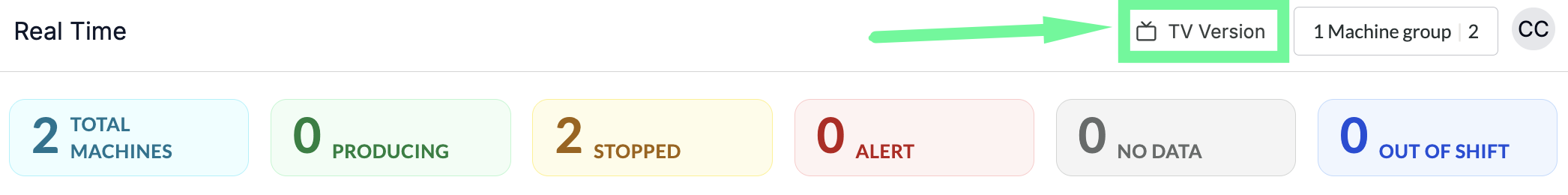

Access TV Version from your "Real Time" page.

Remember that the layout is also defined by the Admins.

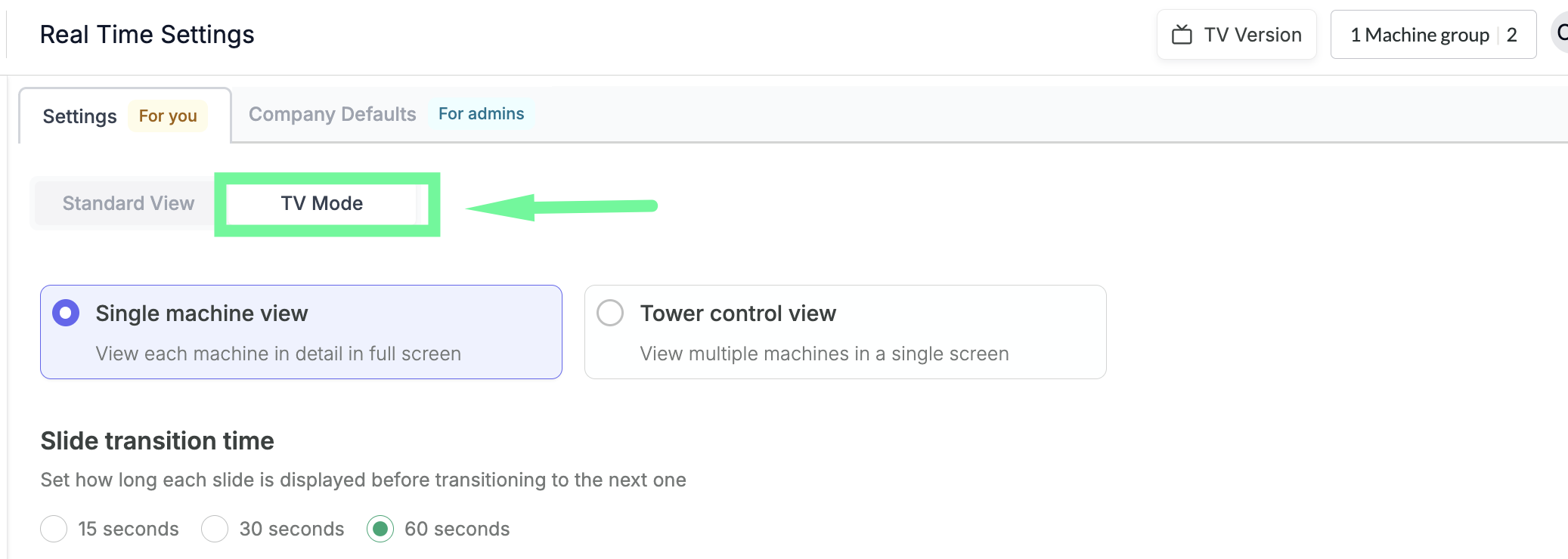

In Settings > Real time:

Select the machines and choose the metrics for each one (up to 4 per machine).You can choose between:

• Single Machine View

• Tower Control View

In Tower Control View, you can monitor multiple machines simultaneously. Layouts are predefined (2×2, 3×3, and 6×3) and are not customizable.

Once finished, click “Save.”



Historical Shifts

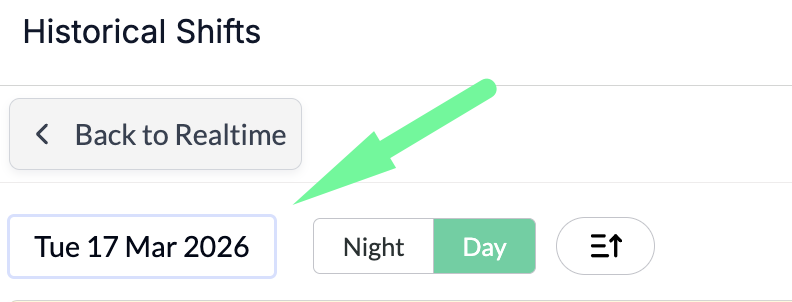

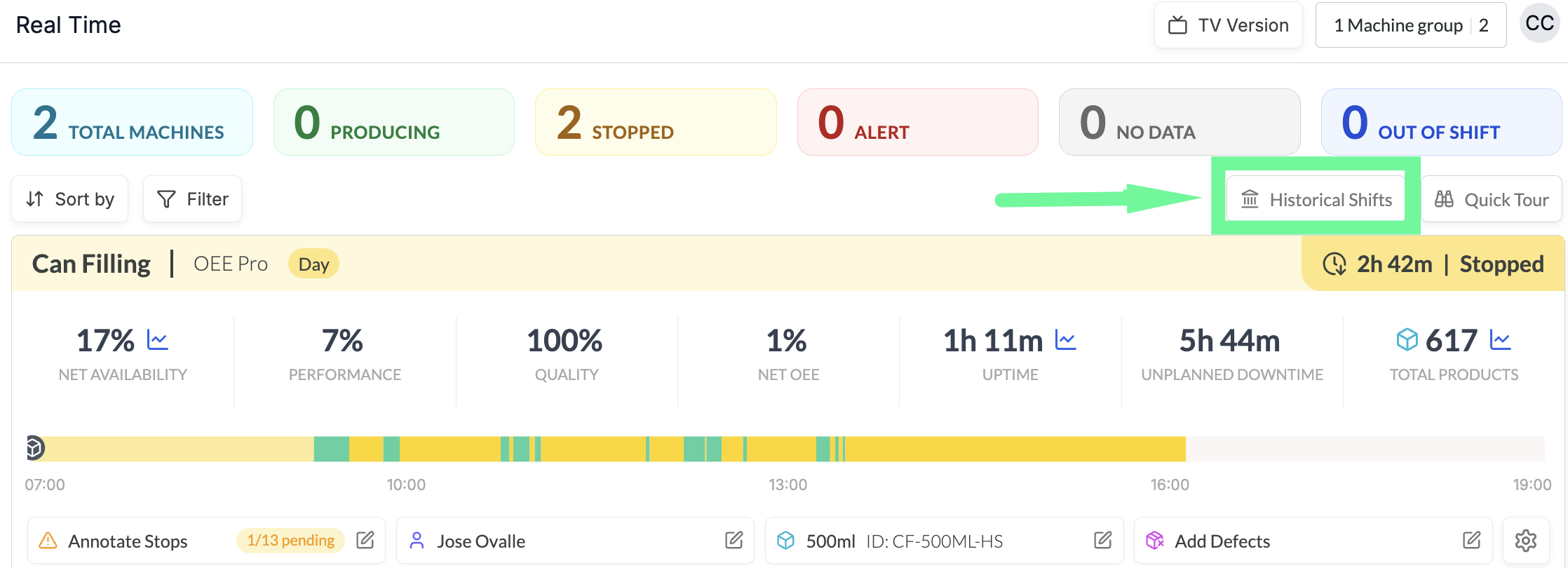

Now, for your convenience, you can access Historical shifts directly from the Real-Time tab.

This feature also allows you to add missing information to past shifts.

Simply select the desired date and shift to review.

If you experience any issues with the new Real-Time view or need assistance, please contact your Customer Success representative. You can also submit a support ticket directly within the Pulsar application.
